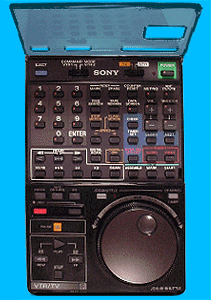

SONY RMT-164
IR REMOTE

The RMT-164 shipped with the EDV-9300 and EDV-9500 Extended Definition BetaVCRs. Functions include the VCR on/off power button, channel express tuning buttons for direct selection of stations. There are buttons for play in forward and reverse, pause, fast forward, rewind, stop and scan in forward and reverse. A two button record sequence prevents accidental start of recording. The shuttle/jog wheel controls scan, x2, x1, x1/5, pause and single frame advance in forward and reverse. Other controls include TV/VTR, tape search, return and remain, index marking and erase, counter reset and data screen on/off. Assemble editing controls for audio/video inserts and pre-roll edits are provided. Timer setting is also available with next, check and clear buttons. Extra functions not found on the recorder are digital scan and digital off plus stop motion and flash with + and - speed control. Some controls double as operators for a Sony television such as sound muting, direct channel selection, plus up and down and volume control. A red LED indicates operation. Requires three AA batteries. Selectable to operate on either channel VTR-1 or VTR-2. To enlarge the remote click the button or click here.
