SONY RMT-143
IR REMOTE

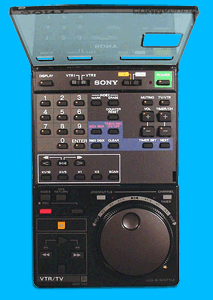

The RMT-143 shipped with the SL-HF750. Functions include the VCR on/off power button and channel express tuning buttons for direct selection of stations. There are buttons for play in forward and reverse, pause, fast forward, rewind, stop and scan in forward and reverse. A two button record sequence prevents accidental start of recording. The shuttle/jog wheel controls scan, x2, x1, x1/5, pause and single frame advance in forward and reverse. Other controls include TV/VTR, index marking and erase, tape return, counter reset and timer setting with next, check and clear buttons. In the effects block for x1/10, x1/5, x1, x2 and scan forward and reverse with pause. The onscreen display can be toggled. Some controls also operate Sony televisions and are accessed by a slide switch. TV operations are indicated by a small orange dot on the button. TV operations are sound muting, direct channel selection, up and down, volume control and power. All of these operations can be performed through this single full featured remote. A red LED indicates operation. Requires three AA batteries. Selectable to either VTR channel 1 or 2. To enlarge the remote click on the button or click here.
