PINCH ROLLER IN UNLOADED POSITION

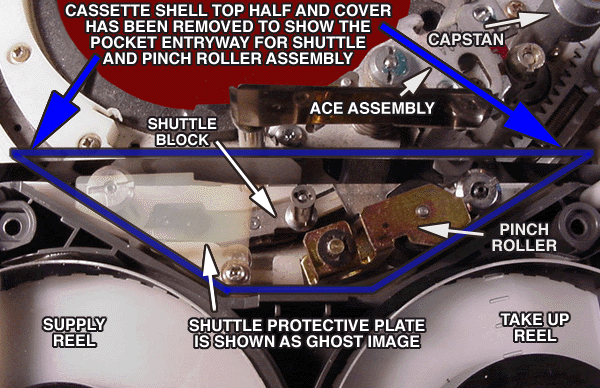

This photo shows the cassette pocket, tape and the cassette with parts removed for clarity. Each primary part is identified. Click on the image to see it without the arrows and click again to the see the pinch roller in the in the loaded position. Notice the capstan, roller position and the alignment block. This block holds the position of the slide assembly against the spring seen eartlier. To return to THE PINCH ROLLER page click here. |
